EB 617 MK II - Hardware Kit

from USD 150.00

For those who don't want to deal with the hassle of sourcing all the screws, nuts, knobs and gears to go along with the 3D printed parts, this kit contains every piece of hardware needed to build an EB 617 MK II, just print your 3D parts and you are good to go.

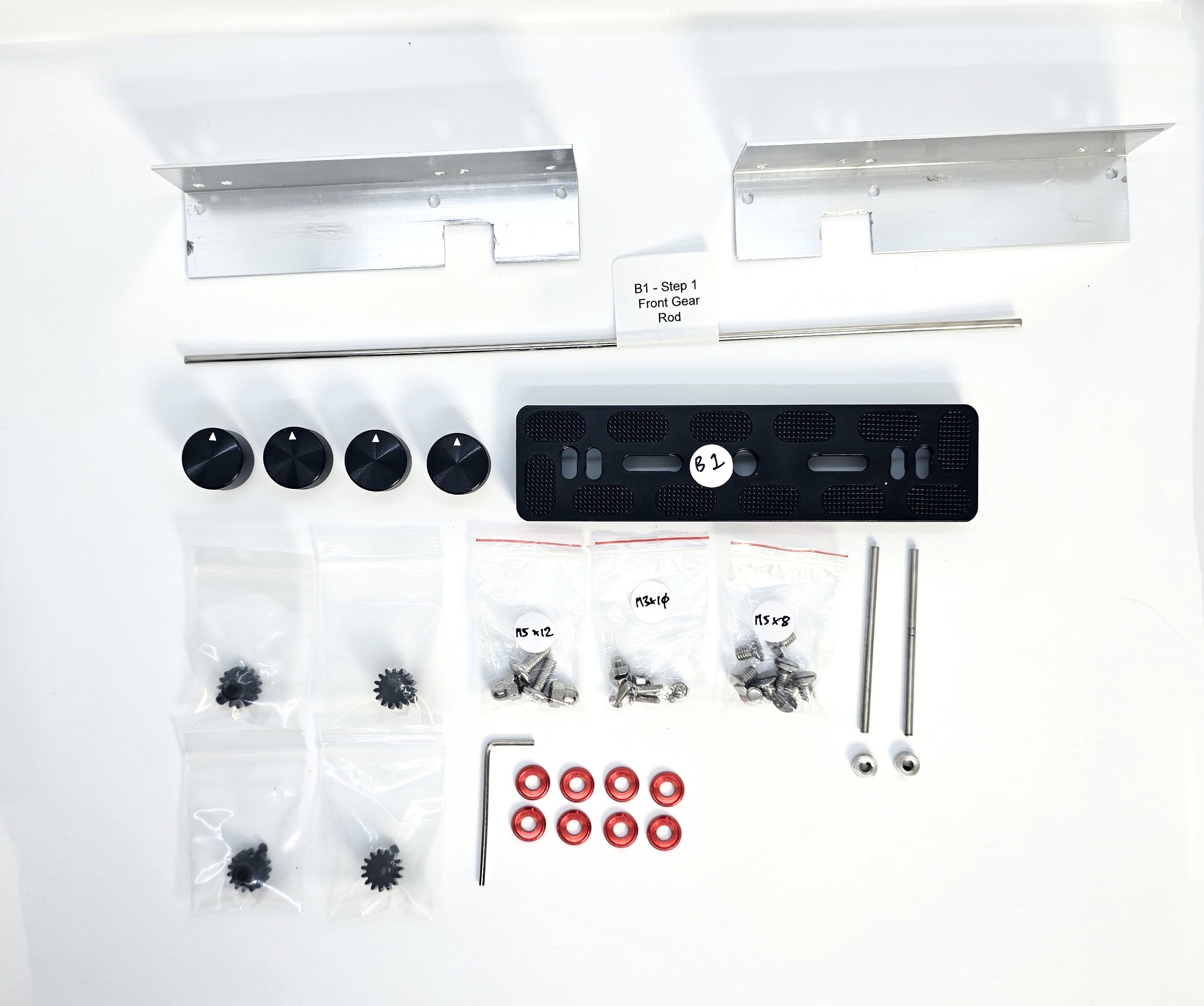

All items are bagged into the individual steps listed in the build instructions to make assembling the camera a straight forward process.

You will need to supply your own ground glass and bellows (instructions on how to build included with digital download kit)

Hardware:

For those who don't want to deal with the hassle of sourcing all the screws, nuts, knobs and gears to go along with the 3D printed parts, this kit contains every piece of hardware needed to build an EB 617 MK II, just print your 3D parts and you are good to go.

All items are bagged into the individual steps listed in the build instructions to make assembling the camera a straight forward process.

You will need to supply your own ground glass and bellows (instructions on how to build included with digital download kit)

Custom Cut Ground Glass Custom Cut Ground Glass Custom Cut Ground Glass
Custom Cut Ground Glass
USD 50.00
Size:
EB 617 MK II - Digital Plans
EB 617 MK II - Digital Plans
USD 150.00
Camera Bellows Camera Bellows Camera Bellows
Camera Bellows
from USD 150.00
Size:

Kit Contents:

Part Quantity

M2 X 6 FH 8

M3 X 6 FH 66

M3 X 10 FH 12

M3 X 16 FH 18

M3 X 8 FH 8

M5 X 8 FH 8

M2 X 8 hex 2

M3 x 4 hex 4

M3 x10 hex 4

M5 X12 hex 2

M3 Flat Nut Black 2

M2 red washer 2

M3 red washer 8

M5 red washer 14

M3 X 6 heatset 100

M5 X 6 heatset 14

M3 X 3 heatset 10

M2 X 6 heatset 14

20 x 15.5 x 6 Knobs 4

20 x 15.5 x 4 Knobs 2

Motor Gear 0.8M 32P 3.175mm 15tooth 4

3mm x 300mm Rod 2

4mm x 30mm Rod 2

Leather handle 1

10mm Red Window 1

.4 x 10 x 5 Compression Spring 2

M3 x Thumbscrews (red) 2

Webcam Cover 1

Felt Liner 1

120 spindle 1

M5 capnuts 2

M3 capnuts 2

30mm x 30mm x 1mm x 130 Angle 2

1mm x 25mm x 80 mm Plate 4

Arca Swiss plate 1

M5 x 20 Chicago Screws 2

1.5 mmAllen key 1

2.0 mmAllen key 1

Spring Steel 1

M5 thumb Nuts 2

M5 X 12 Thumbscrews 2

M5 X 16 thumbscrews 2

M5 X 20 Thumbscrews 2

Felt Gasket Set 1

8 x 2 Magnets 28

Shipping Box 1

Parts Bag Labels 1 sheet

4x5 Back:

M3 washers (red) 2

M3 x 10 Hex 2

M3 x 6 Heatset 29

M5 x 6 Heatset 4

M3 x 16 Flathead 12

M3 X 6 Flathead 7

M3 X 8 Flathead 8

8 x 2 Magnets 24

M3 Nylon Washers 2

M2 x 6 Heatset 4

M2 x 6 Flathead 4
